METKITp
METKITp – Mechanical Engineering Tool Kit – Software Package (free 30 day trial)
Version 1.0.0 Released June 2016 – download here (Link is down while I upgrade the program to 2018). Beta testers required. If interested, email me in the contacts section.
This program is a set of over 250 calculators used in mechanical engineering. It shows the dimensions and calculations of specialized information applicable to the field of mechanical engineering.

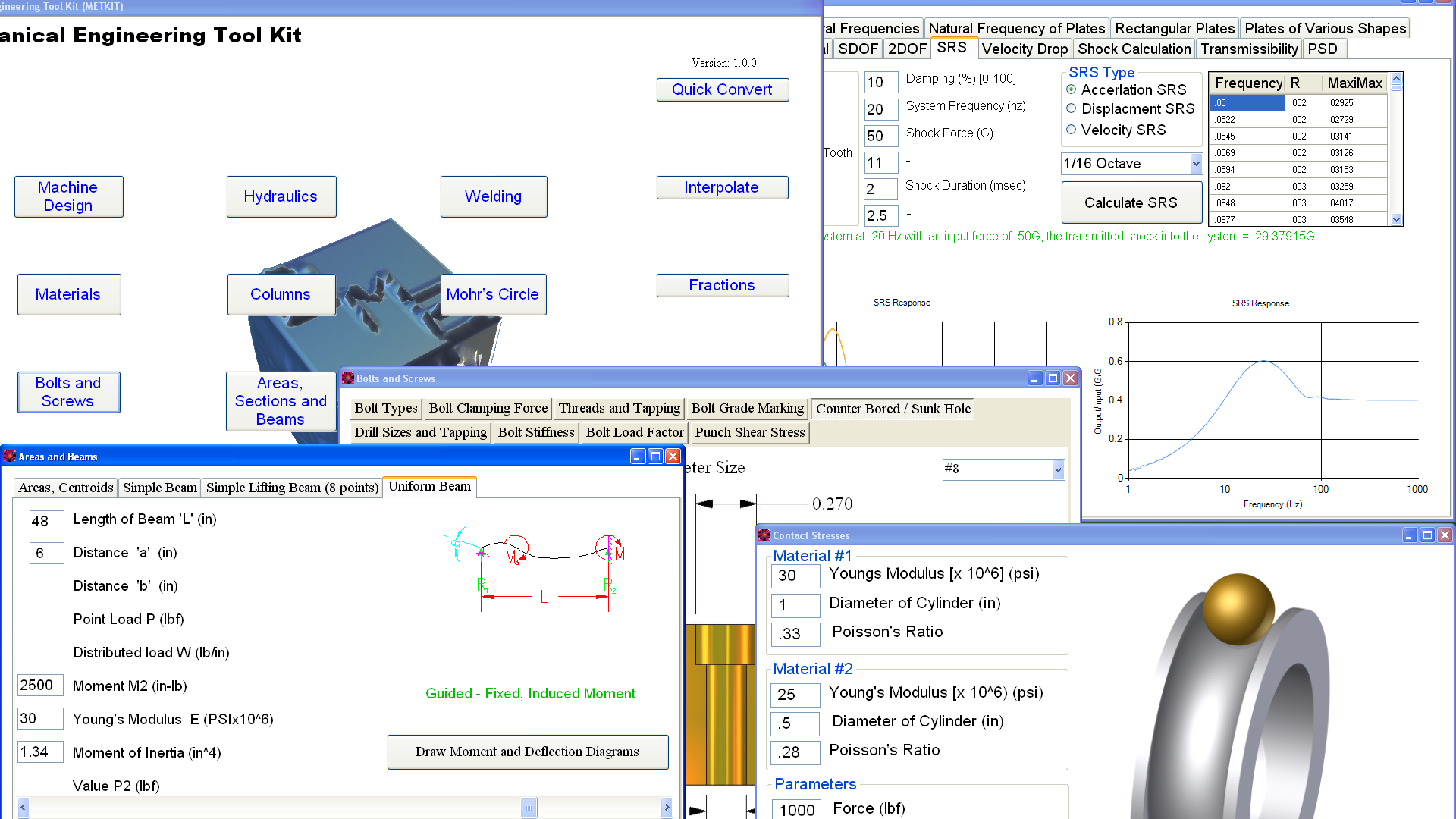

(METKITp with Areas and Beams, Bolts and Screws, Shock & Vibration and Contact Stresses Modules Opened)
Main Subject Areas
- Machine Design
- Materials
- Bolts and Screws
- Contact Stresses (Hertzian)
- Pins and Bushings
- Hydraulics
- Columns
- Areas, Sections and Beams
- Stress Concentrations and common Stress Calculations
- Belts/Pulleys/Splines and Sprockets
- Welding
- Mohr’s Circle
- Shock and Vibration
- Interference
- Plates
- Fatigue
- Fatigue Life
Topics include:
- Tool clearances, Keyway Sizing, Set Screw Forces, Orings, Retaining Rings, ORB, Cotter Joints, Tapered Pins, Shafts and Rings, HSS Steel sizes, NPS data, Material Guages, Wire Rope, Hardness and Durometer, Bolts, Clamping Forces, Bolt Load Factors, Bolt Grading and Types, Drill sizes and tapping, Hertzian Contact Stresses (10) , Hydraulics, Columns, Areas, Sections, Beams, Stress Concentrations, Belts, Pulleys, Sprockets, Splines, Welding heat, roller chain sizing, involute splines, belt tension, sheaves, SRS, PSD, Plate natural frequencies, SDOF, 2DOF, drop, interference, hubs, rotating disks, ….. much more.
